- Non-Interlocked (Interlocking Optional)
- Zero-Up Cavities (Captive-Up Optional)
- Smooth Or Serrated Clamp Surfaces
- For Multi-Bend Operations;
- All Standard Features Plus Inter-Die Locating Keys And Hubs
- Built For Precision And Durability
- Double-Inserted Bend Dies
- Double Or Closed-End Keyways
- Interlocked Designs
- Carbide Grip Coating Or Aggressive Serrations
- Complete Your Setup With:
- Clamp Insert Screws
- T-Keys And Screws For Clamp Dies
- Mounting Plates And Screws (Pines-Compatible)
- Hanger Brackets And Screws For Pressure Dies
- Keys, Pilots, And Screws For Stacking Bend Dies
- Ideal For Square And Rectangular Tubing
- Bend Die With Precision Clamp Insert
- Double Thru-Keyway Or Closed-End Keyway
- Lifting Holes (For Dies Over 12 Inches)

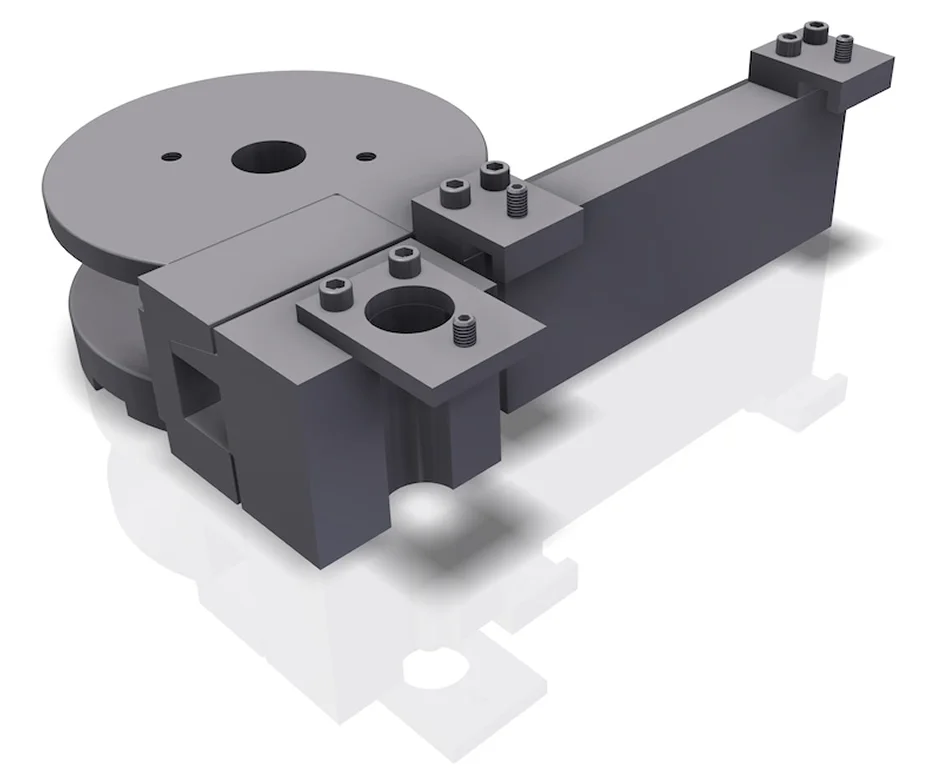

- Tapered-Leaf Cavity Interlock For Secure Bending And Easy Release
- Perfect For Most Tube And Pipe Bending Machines:
- Bend Die With Precision Clamp Insert (Reversible For Left- Or Right-Hand Use)
- Single Keyway And Lifting Holes (For Dies Over 8 Inches/203mm)
- Reversible Clamp And Pressure Dies With T-Key Or Hanger Brackets
- Non-Interlocked, Zero-Up Cavities
- Smooth Or Fine V-Type Serrated Clamp Surfaces
