TM40 Tube End Shrinking Forming Machine
Thumbnail 1

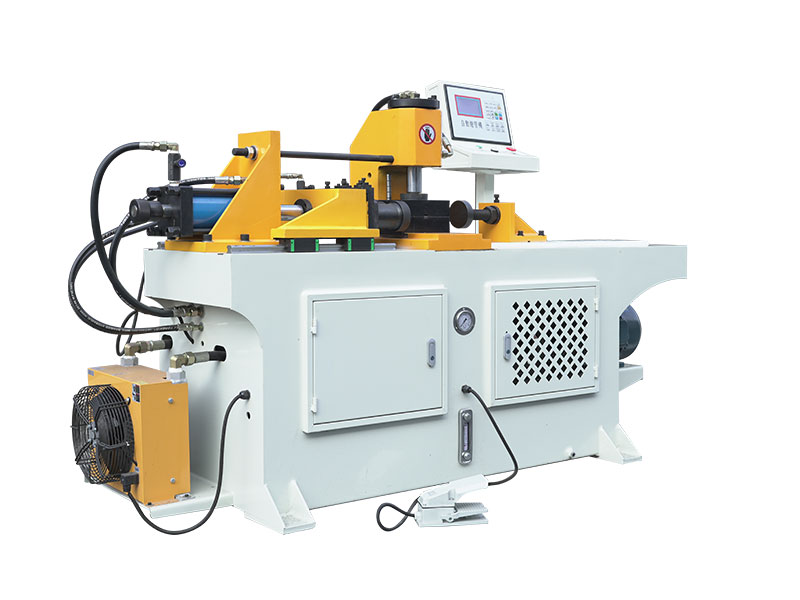

TM40 Tube End Shrinking Forming Machine

High-precision pipe section forming machine designed for professional tube processing. Features advanced hydraulic system and CNC control for accurate and efficient pipe section forming operations.

Back to Products

Product Description

  • The product is controlled by a microcomputer and driven by hydraulics. It features Chinese subtitle display and man-machine interactive operation.
  • Manual and semi-automatic operation modes can be freely selected. The one-point foot pedal switch has both start and emergency stop functions.
  • It has a single-station configuration and uses linear guides as the carrier, ensuring good product repeatability.
  • The whole machine is characterized by easy operation, stable performance, high work efficiency and high safety factor. It is an ideal equipment for the pipe fitting processing industry.
  • Processing shapes include convex, concave, joint, long offset, square, extended, inclined, V-shaped, open elbow, flat elbow, etc. The mold shape is changed according to the workpiece.
  1. Operation: Microcomputer-controlled, hydraulic-driven. Features Chinese display + user-friendly interface (manual/semi-auto modes). Single foot pedal starts/emergency stops.
  2. Design: Dual-station setup shrinks 2 tubes at once. Linear guides ensure smooth, repeatable motion. Molds shape tubes into convex, concave, V-shaped, flat, etc. (mold depends on material).
  3. Adjustability: End distances tweakable for tube length (double-end models only). Clamp single/double ends as needed.
  4. Perks: Easy to use, stable, high-efficiency, safe—perfect for tube processing.
Model
Unit
SW38
SW50
Maximum bending pipe diameter × wall thicknessmmΦ38×2Φ50×2
Bending radius rangemm15-20015-250
Bending angle rangedegree190190
Double bend center rangemm190-1500300-2000
System maximum pressureMpa1214
Equipment widthmm12001650
Equipment heightmm16001400
Equipment lengthmm26003000
Equipment weightkg12002000
