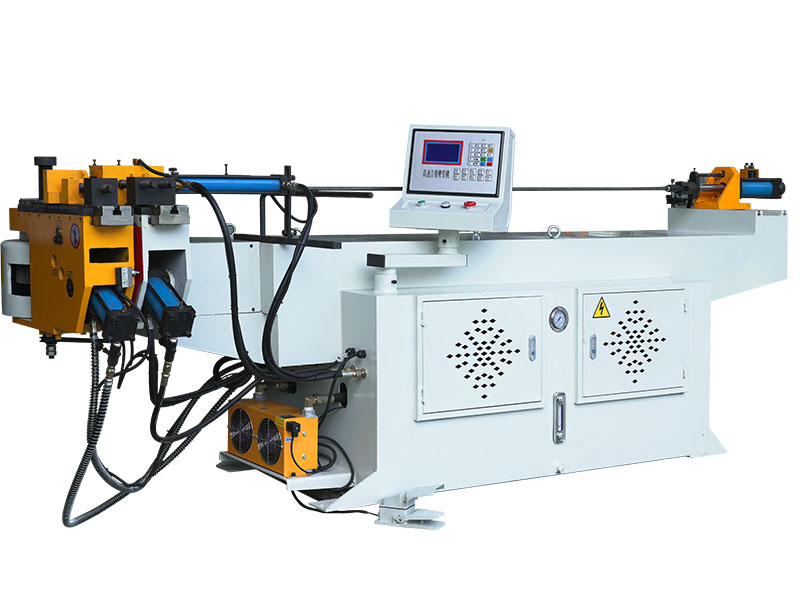

38NC Manual Square PipeBending Machine

This 3D Auto CNC Exhaust Steel Tube Bending Machine is pretty user-friendly! First off, the tube bending, feeding, and rotating functions are all driven by servo motors—super precise, especially for exhaust pipes that need tight spacing between two bends.

Back to Products

Product Description

You can choose stack layers from 1 to 6 as options, depending on what you need. The control system uses an industrial PC with a 15-inch touchscreen, so operating it is straightforward. There are even operation videos to walk you through how to use it.

Changing the bend tooling is a breeze too! They’ve got videos showing the tooling change process, so you can switch things up quickly without any hassle.

Model	Unit	DW38	DW50	DW63	DW75	DW89	DW114
Maximum bending pipe diameter × wall thickness	mm	Φ38×1.8	Φ50×2.0	Φ63×2.0	Φ75×5.0	Φ89×6.0	Φ114×12.0
Bending radius range	mm	15-150	15-250	25-300	30-350	50-450	60-500
Bending angle range	degree	190	190	190	190	190	190
Standard core length	mm	1600	2200	2600	2800	3500	4500
Hydraulic motor power	kw	4	5.5	5.5	7.5	11	22
Maximum system pressure	Mpa	12	12	12	12	14	14
Equipment width	mm	750	800	1000	900	1300	1850
Equipment height	mm	1250	1200	1300	1300	1400	1500
Equipment length	mm	2500	3000	3300	4300	4500	6400
Equipment weight	kg	600	800	1000	1900	2200	6800
